Photo Gallery- Grapples

Features


Domestic Parker hoses and fittings
Full quick attach plate
Bolt-on removable side plates

Solo Grapple

Features

  • Domestic Parker hoses and fittings
  • Full quick attach plate
  • Bolt-on removable side plates
  • Commercial grade steel
  • Reinforced outside tines
  • All pivot points are greasable
  • Precise visibility cut outs
  • Optional bolt-on cylinder cover


Solo Grapple

 Prime Cyclops Solo Grapple is available for those of you with smaller skid steers that want a lighter weight option but still the commercial grade heavy duty built grapple rating!



Specifications

  • Common Sizes: 48" and 52"
  • Heavy Duty , Weight 48" 500lbs  52" 550lbs
  • Light Duty ,Weight 48" 700lbs  52" 750lbs
  • Spacing Between Tines: 3"
  • Steel Tine Width: 3/8"  Heavy Duty
  • Steel Tine Width: 1/4"  Light Duty
  • Side Plate Width: 3/8"
  • Grade 50 Cutting Edge: 1/2"


Call for more info or to place an order

Tim 574-252-6373

Get a Quote

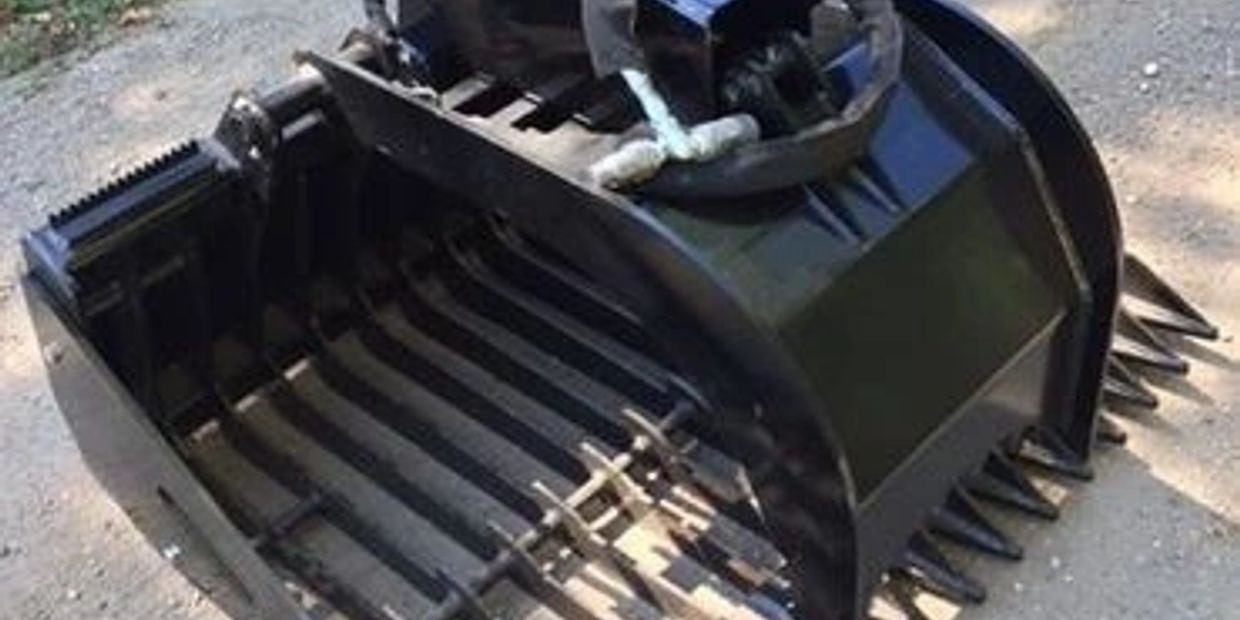

Rock & Brush Grapple

Rock & Brush Grapple

Features

  • Domestic Parker hoses and fittings
  • Full quick attach plates
  • Bolt-on removable side plates
  • Commercial grade steel
  • Reinforced outside tines
  • All pivot points are greasable
  • Precise visibility cut outs
  • Optional bolt-on cylinder covers



Rock & Brush Grapple


The rock and brush grapple has a similar base as the rock bucket except it has two 3,000 psi independent working cylinders for grabbing objects. The 3/8″ material with 3″ spacing between tines enables dirt to fall through while holding on to the larger loads. The 1/2″ Grade 50 hardened cutting edge provides additional strength to the tines so you can easily grab and move material securely with our all reinforced outside tines and all grease able pivot points. Add cylinder covers to literally protect that cylinder up to 95%!



Specifications

  • Common sizes: 62",68”,74",78" and 84"
  • Commercial Duty weight,
  • 68" 980 lbs
  • 74" 965 lbs
  • 78" 1100 lbs
  • 84" 1175 lbs
  • Heavy Duty weight,
  • 62" 850 lbs
  • 68" 905 lbs
  • 74" 965 lbs
  • 78" 1025 lbs
  • 84" 1100 lbs
  • Light Duty weight,
  • 62" 585 lbs
  • 68" 600 lbs
  • 74" 620 lbs
  • 78" 640 lbs
  • 84" 680 lbs
  • Spacing between tines: 3"
  • Side plate width: 1/2"  CD 3/8" HD 1/4" LD
  • Steel tine width: 3/8"  CD & HD 1/4" LD
  • Grade 50 cutting edge: 1/2"


Call for more info or to place an order

Tim 574-252-6373

Get a Quote

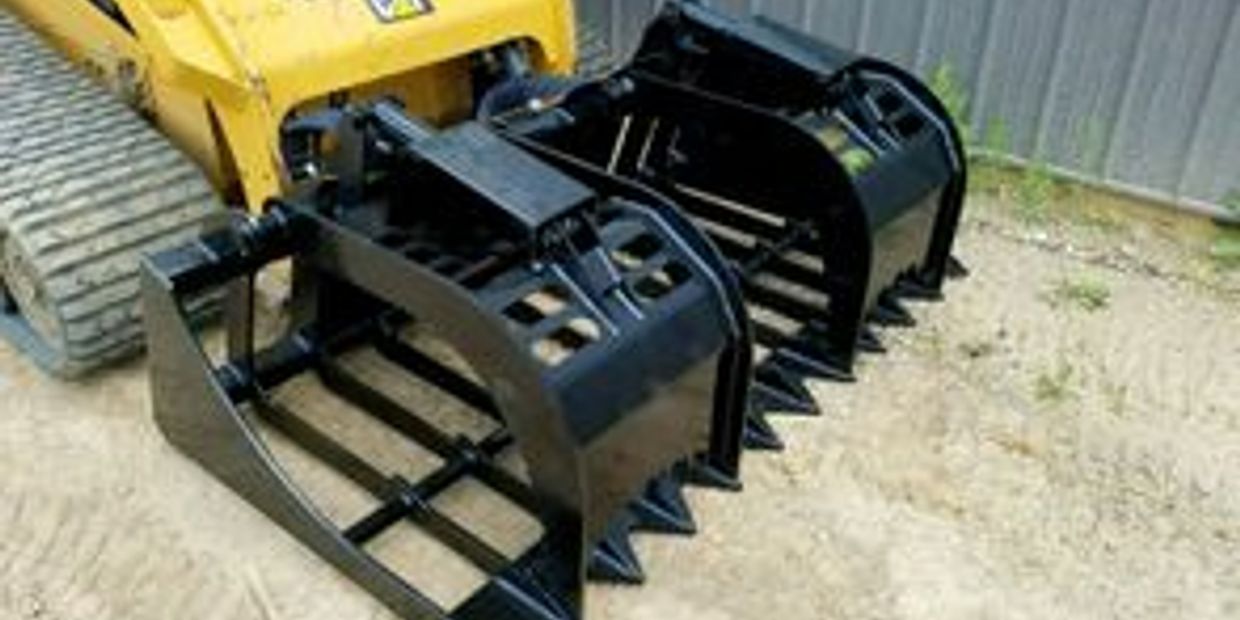

Root Grapple

Root Grapple

Features

  • Domestic Parker hoses and fittings
  • Bolt on removable side plates
  • All pivot points are greaseable
  • Full quick attach plates
  • Optional bolt-on cylinder covers
  • Commercial grade steel


Root Grapple

Move all sorts of debris, from rocks to brush, with the root grapple. It features very strong 1/2 inch thick tines with a 1/2 inch under-support for added strength. For longer objects you can remove the end plates for a wider capacity



Specifications

  • Common sizes: 69",76" and 83"
  • Spacing between tines: 6.25"
  • Steel tines width: 1/2"


Call for more info or to place an order

Tim 574-252-6373

Get a Quote

Industrial Clam/Brush Root Grapple

Features

  • Domestic Parker hoses and fittings
  • Full quick attach plates
  • Commercial grade steel
  • All pivot points are greasable
  • Replaceable digging/excavator performance teeth
  • Reinforced gusseted tines
  • Universal flat faced couplers


Industrial Clam/Brush Root Grapple

 The Prime Attach Industrial Clam/Brush Grapple is an absolute “beast mode” style grapple made for multi purpose use. Clean up brush, dig out roots, large rocks, concrete work, logs and more! Features a large 51″ bite with two 3,000 PSI hydraulic cylinders and serrated teeth design for clamping power. The replaceable digging/excavator teeth make this a popular grapple because of the versatility it brings to the job site. We don’t mess around like others and cut corners with cheap foreign hoses we use Domestic Parker hoses and fittings! Comes with universal flat faced couplers (unless other requested) and can be adapted to your tractor or loader as well.


Specifications

  • Common Sizes: 66"; 74" and 82"
  • 3/4" Grade 50 steel bottom tines
  • 1/2" Grade 50 steel top tines
  • Fully gusseted frame top and bottom
  • Massive 51" opening to get the job done!
  • 2x 3,000 PSI Hydraulic Cylinders for bite
  • Serrated teeth on clam to hold in debris of all kinds


Call for more info or to place an order

Tim 574-252-6373

Get a Quote

Prime Series Forestry Grapple

Features

Your farm equipment dealer for all your skid loader attachments needs:Grapples,  Quick Attach, Grapples, Mowers,  Tree Pullers, Backhoe, Snow Buckets,

Pallet Forks, and more......


Grapples  have Domestic Parker hoses and fittings


Full quick attach plates.


Commercial grade steel.


All pivot points are greasable.


Massive 52 ½” opening.


Serrated grapple teeth














Prime Series Forestry Grapple





  This grapple is nothing short of a MONTSER. The bucket bottom is all ¾” Grade 50 steel with approx. 12” of spacing between the tines. The Cutting edge is a ½” Grade 50 steel and the massive grapples coming over the top are also ½” Grade 50. We overkill this grapple for the big dog skid steers like our Bobcat T770 and put this thing to the test! Serrated teeth on grapples for added grip, all greaseable pivot points, domestic Parker hoses, Parker fittings, and Parker couplers. Grapple opening @ 52 ½”


Visit us at South Bend Attachments



















Specifications

  • Common sizes: 74" and 84"
  • Spacing: 12"
  • Length: 38.5"
  • Height: 38"
  • Edge: 1/2" G50
  • Weight: 1,200 lbs and 1,300 lbs



Call for more info or to place an order

Tim 574-252-6373

Get a Quote

Video

Check out this great video of the Rock & Brush Grapple
